Metal Panel Specifications
- 26 Gauge panel applies over open framing; roof deck not required
- 28 Gauge panel; roof deck recommended
- AZ50 Galvalume protective coating substrate
- Sherwin-Williams Weather XL™ or Fluropon® Paint System
- Available in 20 standard colors; custom colors require minimum purchase.

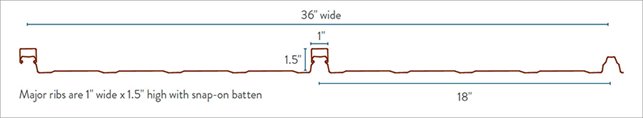

- 36" panel width coverage
- Minimum roof slope: ½ : 12
What is oil canning?
Oil canning is the visible waviness in the flat areas of a metal panel and is not cause for rejection of the panel.
The Metal Construction Association (MCA) explains oil canning in its Technical Bulletin,
Oil Canning in Metal Roofs and Metal Wall Systems.
Install Guides
Architects and Specifiers
Specs for Eclipse Roof System™
Section 07 41 13 | Metal Roof Panels
Testing: UL 580 Class 90 Wind Uplift, ASTM E
1592 Wind Uplift, UL 2218 Class 4 Impact
